In the specialized world of architectural signage, the terms "Braille" and "Tactile" are frequently used interchangeably. However, as experts at Landea Signs Co., Ltd., we understand that for a business owner, architect, or facility manager, confusing these two can lead to more than just a linguistic mix-up—it can lead to non-compliance with international accessibility laws like the ADA (Americans with Disabilities Act) or the UK Equality Act.
Navigating the nuances of sensory signage is critical for creating an inclusive environment. Whether you are outfitting a high-end hotel in Dubai or a corporate office in New York, understanding the technical and functional differences between Braille and tactile elements is the first step toward true accessibility.
To understand the difference, we must first define the scope of each term.
A tactile sign is any signage that includes raised physical features intended to be read by touch. This is the "umbrella" category. If you can feel the shape of a letter, a pictogram, or a border with your fingers, it is tactile.
Tactile Characters: These are raised sans-serif letters or numbers (usually between 1/32 and 2 inches high).
Pictograms: Raised symbols, such as the International Symbol of Accessibility (ISA) or a restroom icon.
Braille is a specific writing system used by people who are visually impaired. It consists of raised dots arranged in "cells." In the context of signage, Braille is almost always a component of a tactile sign, but not all tactile signs are effective without Braille.
Grade 2 Braille: The standard for most regulatory signage, which uses contractions to save space and increase reading speed.

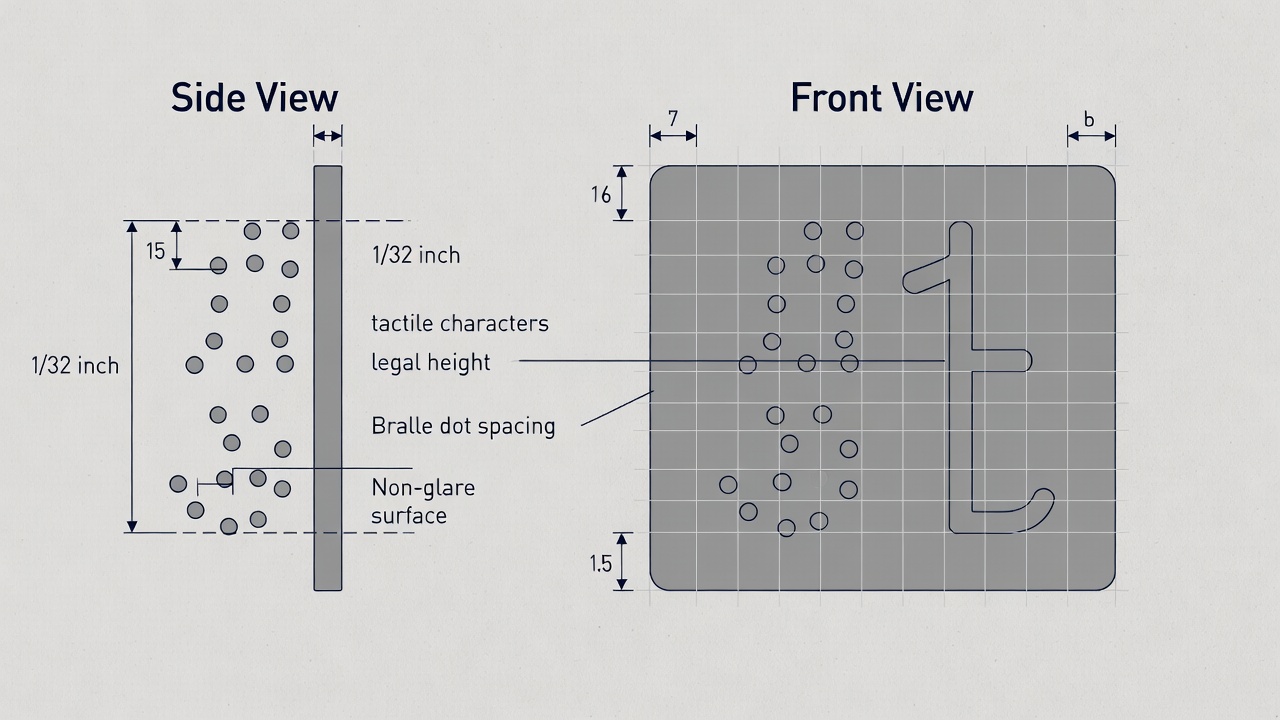

From a manufacturing perspective, the precision required for these signs is immense. Below is a comparison of the technical requirements often mandated by global accessibility standards.
| Feature | Tactile Characters (Raised Text) | Braille (Dots) |
| Height Requirement | Minimum 0.8mm (1/32 inch) raised from the base. | Domed or rounded shape, height of 0.6mm – 0.9mm. |
| Font Style | Must be Sans-Serif; no italics or script. | Must be Grade 2 (Contracted) Braille. |
| Case | Typically Uppercase only for ADA compliance. | Follows specific cell structure rules. |
| Character Spacing | Measured between the closest points of adjacent characters. | Strict dot-to-dot and cell-to-cell spacing. |
| Finish | Non-glare / Matte finish is mandatory. | Must be smooth to the touch to prevent skin irritation. |
A common mistake in sign procurement is assuming that raised letters (tactile) are enough for those who are blind. In reality, many individuals who have been blind from birth or a young age rely primarily on Braille, as tracing the outlines of large raised letters is slow and often confusing for complex words.
Conversely, Tactile Characters are incredibly helpful for individuals with "low vision" who may still use their sight but need the physical reinforcement of the letter shape to confirm what they are seeing.
The Expert View: At Landea Signs, we recommend a "Multi-Sensory Approach." A compliant sign isn't just a legal checkbox; it’s a navigation tool. By combining high-contrast visual text, raised tactile characters, and Grade 2 Braille, you serve the widest possible demographic of users.
If your firm is exporting or installing signs internationally, "one size" does not fit all.
The Americans with Disabilities Act is the gold standard for tactile signage. It dictates that signs identifying permanent rooms (restrooms, exits, room numbers) must have both tactile characters and Braille.
In Australia, the Building Code (BCA) requires specific luminance contrast. The sign must stand out from the wall, and the text must stand out from the sign background by at least 30%.
While the UK focuses heavily on visual contrast and "embossed" characters, Braille is often recommended for "wayfinding" (directional) signs, not just room identifiers.

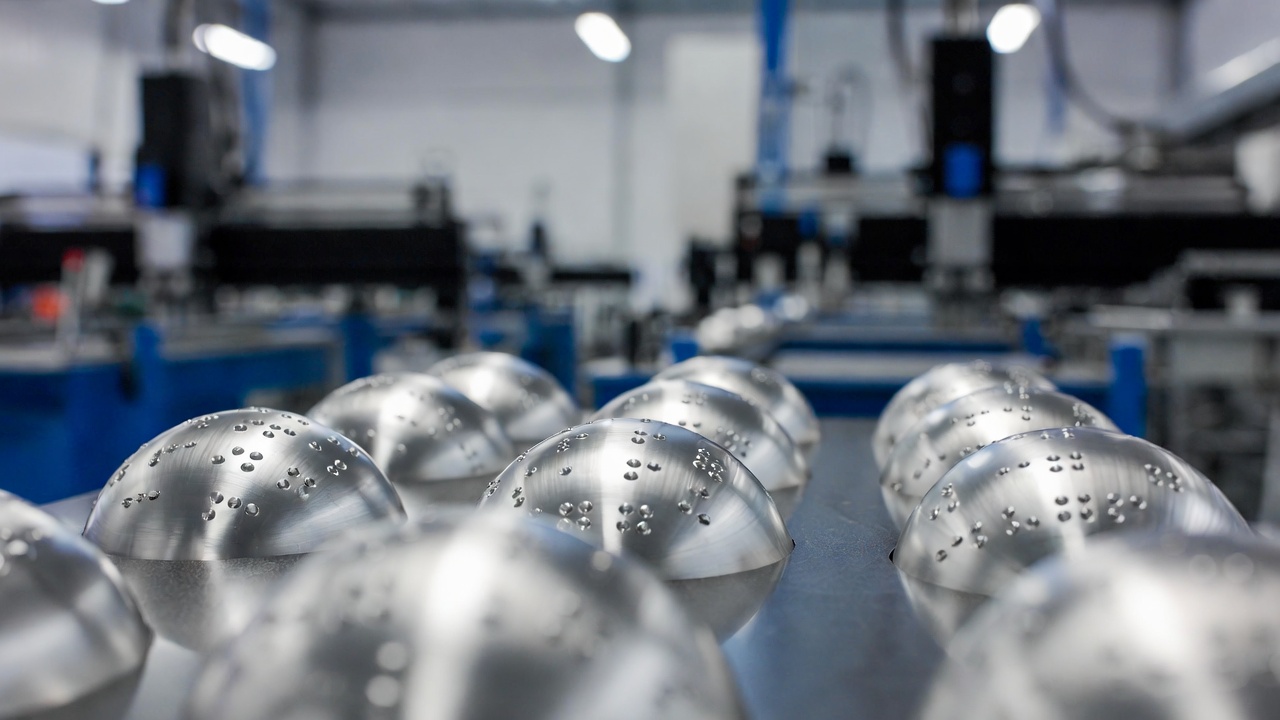

Most articles focus on the law. Few focus on the materiality. As a manufacturer, we see many signs that are "compliant" but practically useless because they are uncomfortable to touch.
UV Printing vs. Infix/Appliqué: Some manufacturers use 3D UV printing to create tactile dots. While cost-effective, these can sometimes feel "scratchy" or brittle.
The Landea Standard: We advocate for embedded spheres or routed appliqué. These methods ensure the Braille dots are perfectly domed and the tactile letters have smooth edges, preventing "finger fatigue" for the user.
Choosing between Braille and Tactile-only options depends on the location and purpose of the sign.
Permanent Room Designations: Kitchens, restrooms, mechanical rooms, and floor levels.
Exit Routes: Doorways leading to stairs or the exterior.
Elevator Hoistway Entrances: Must include floor designations in Braille on both jambs.
Overhead Signs: Signs hanging from the ceiling do not need Braille because a person cannot reach them to touch them.
Informational Signage: Non-permanent signs, such as "Meeting in Progress," often don't require the same level of tactile rigor, though inclusion is always better.
The industry is moving toward Smart Signage. We are currently seeing a rise in "Talking Signs" that use NFC (Near Field Communication) or QR codes designed specifically for the visually impaired (like NaviLens).
However, technology is not a replacement for physical Braille. In an emergency—such as a fire where power might fail or smoke obscures vision—the physical, tactile nature of a Landea Braille Sign remains the most reliable life-safety tool in the building.

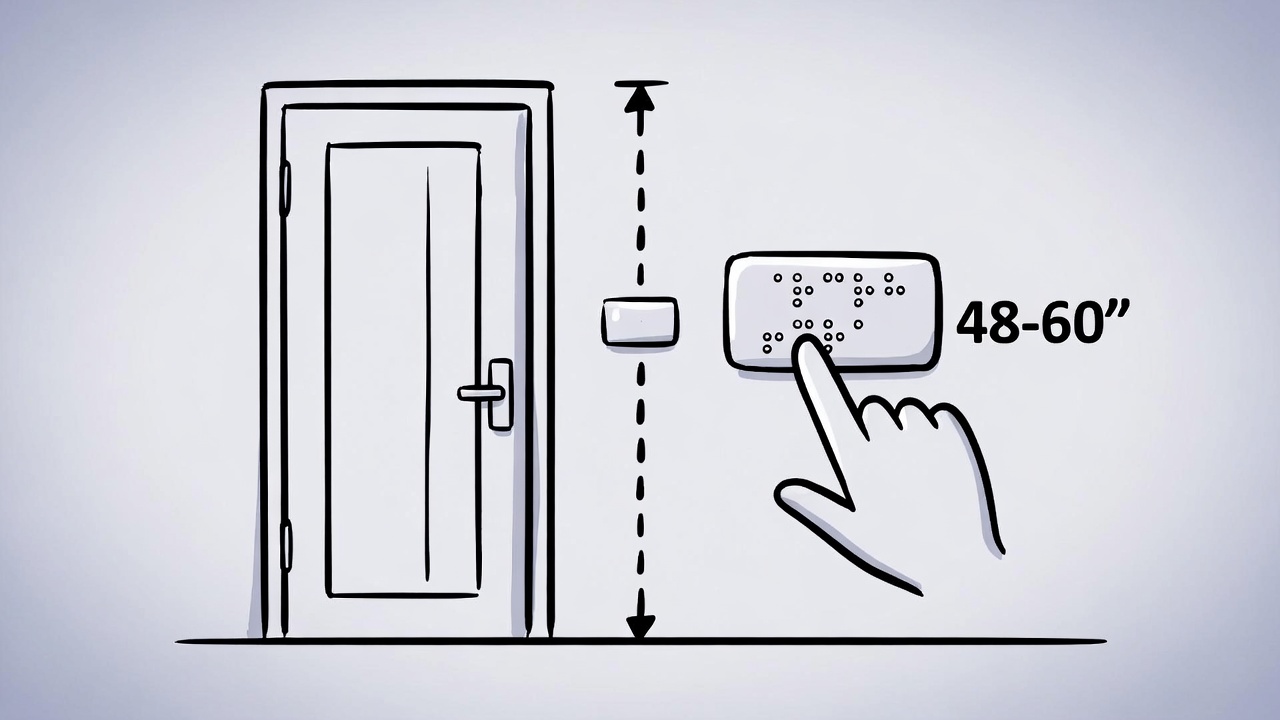

Even the most expensive Braille sign is useless if installed incorrectly.
Height: The baseline of the lowest tactile character should be a minimum of 48 inches above the floor.
The Reach: Signs should be located on the latch side of the door. This allows a person to find the sign without being hit by the door if it opens suddenly.
Clear Space: Ensure there is an 18" x 18" minimum "clear floor space" centered on the tactile characters, free of obstructions like trash cans or plants.
A recent client, a 5-star resort, was hesitant to install Braille signs, fearing they would "ruin" the aesthetic of their hand-carved wooden doors.
The Solution: We designed Clear Acrylic Tactile Plates with frosted Braille dots. The plates were virtually invisible from a distance, allowing the wood grain to show through, but provided full ADA compliance and tactile functionality for guests. This proves that accessibility and high-end design are not mutually exclusive.
Before placing an order, ensure your manufacturer can confirm the following:
[ ] Are the Braille dots Grade 2?
[ ] Is the font Sans-Serif?
[ ] Is there a Non-Glare finish?
[ ] Does the sign meet the 70% contrast ratio (recommended) between text and background?
[ ] Are the characters raised exactly 1/32"?
Q1: Does every sign in my building need Braille?
No. Only signs that identify a permanent room or space, exit signs, and elevator signs generally require Braille. Directional signs (e. g., "Offices this way") and overhead signs do not.
Q2: Can I use "Grade 1" Braille for my signs?
In most jurisdictions, including the US, Grade 2 Braille is required for public signage because it is the standard used by the majority of Braille readers for its efficiency.
Q3: What is the best material for Braille signs?
Acrylic, Aluminum, and Zinc are the most durable. For high-traffic areas, we recommend metals like brushed aluminum or stainless steel to prevent wear on the raised dots.
Q4: Is there a specific color requirement?
The law doesn't mandate specific colors, but it does mandate "Contrast." Light text on a dark background or dark text on a light background is required (a 70% contrast ratio is the industry best practice).
Q5: What happens if my signs are not compliant?
Non-compliance can lead to significant legal fines, lawsuits, and the cost of replacing all signage. Furthermore, it limits the independence and safety of your customers and employees.
ADA Standards for Accessible Design: Chapter 7: Signs
American Foundation for the Blind (AFB): Braille Literacy Statistics
SEGD (Society for Experiential Graphic Design): White Paper on Wayfinding & Accessibility
ISO 17049:2013: Accessible Design — Application of Braille on Signage
Landea Signs Internal Manufacturing Quality Report 2025: Tactile Durability in High-Traffic Environments.
