In the high-precision world of architectural signage, the debate between Engraved Braille and Applied Bead Braille is more than an aesthetic preference—it is a critical decision impacting long-term durability, ADA compliance, and lifecycle costs. As a specialized manufacturer at Landea Signs Co., Ltd., I have overseen the production of thousands of wayfinding systems for hospitals, corporate headquarters, and transit hubs. I have seen firsthand how an initial "cost-saving" choice can lead to significant retrofitting expenses just a few years later.
This technical analysis provides a deep dive into the mechanical differences, cost structures, and tactile efficacy of these two dominant application methods to help developers and architects make an informed procurement decision.
Before calculating ROI, we must understand the physical transition of the material. The method of creation dictates how the sign will perform under physical stress.
Often referred to as "Routed" Braille, this is a subtractive process.
The Process: A CNC milling machine cuts away the top layer of the substrate (such as phenolic plastic, aluminum, or zinc), leaving the Braille dots as integral parts of the sign face.
The Result: A monolithic structure where the dot and the sign plate are a single, continuous piece of material.
This is currently the industrial standard for premium architectural signage and follows an additive process.

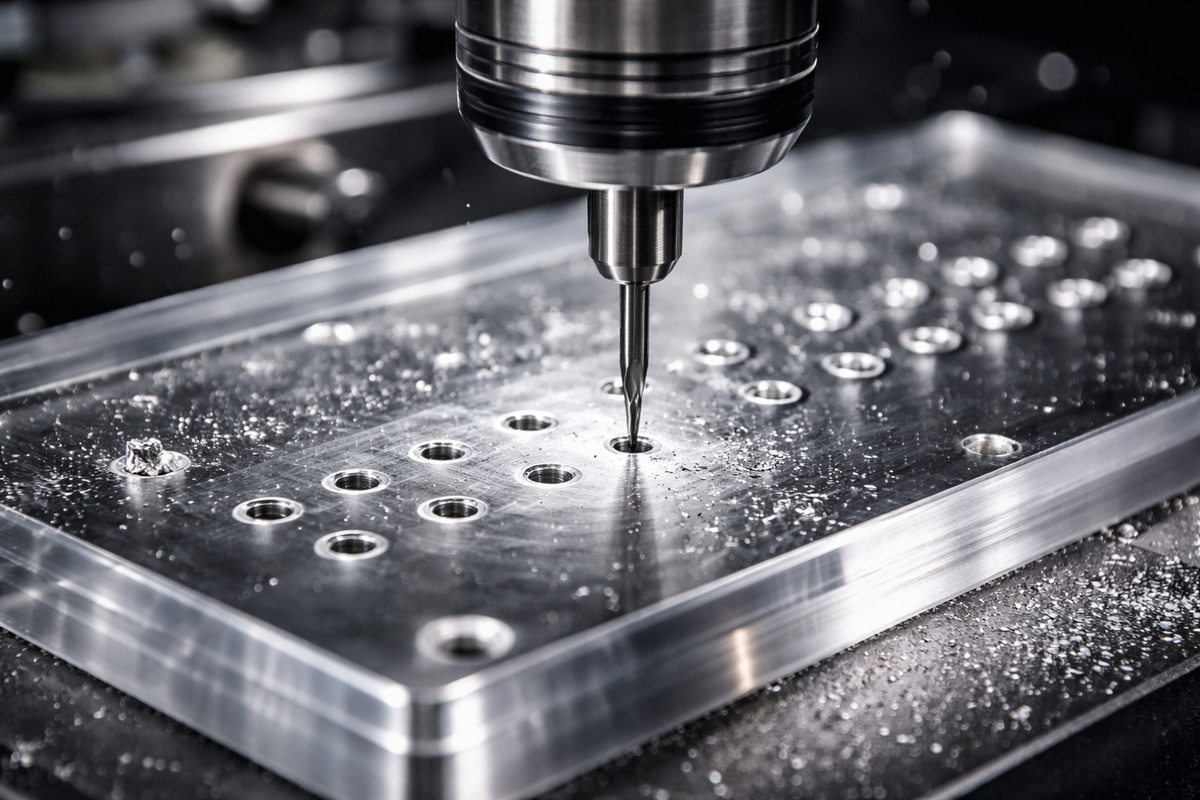

The Process: A CNC machine drills high-precision holes into the substrate. A specialized pneumatic tool then "seats" a small sphere—made of acrylic, brass, or stainless steel—into each hole.
The Result: A distinct, perfectly spherical dome that offers a superior tactile profile for the end user.
For signage to be effective, it must serve the visually impaired community with precision. The difference in "feel" between these two methods is substantial.

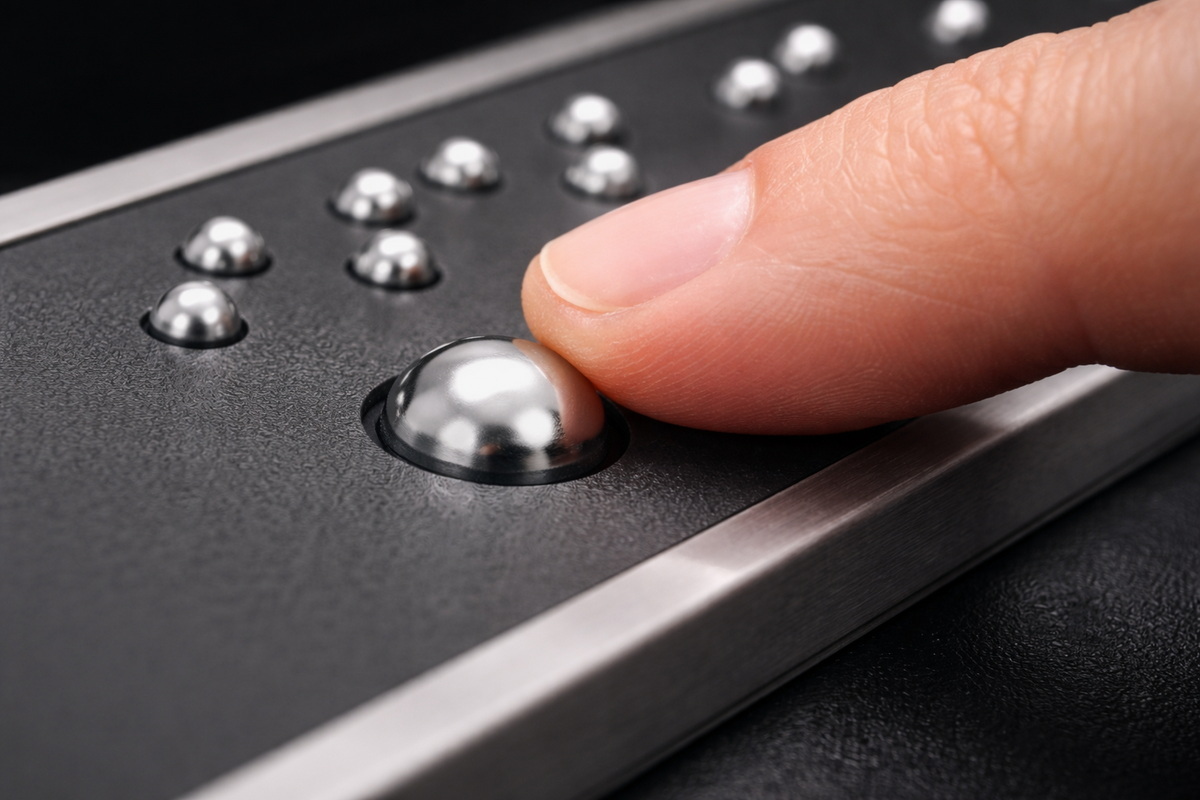

Applied Bead Braille: The spherical shape of the bead is the "gold standard." It mimics the rounded tip of a finger, allowing for a smooth gliding motion. Because the beads are manufactured to strict tolerances, every dot is perfectly uniform.
Engraved Braille: Because material is carved away, dots often have a slightly "flat" top or a "stepped" profile depending on the router bit’s wear. While compliant if executed correctly, users often report that engraved dots feel "sharper" or less distinct than their beaded counterparts.
When analyzing Engraved Braille vs. Applied Bead Braille, professional buyers must look at both Initial Capex (Capital Expenditure) and OpEx (Operational Expenditure).
| Feature | Engraved Braille | Applied Bead Braille |
| Material Waste | High (Subtractive) | Low (Additive) |
| Production Speed | Fast for simple designs | Slower (requires drilling + insertion) |
| Durability | Extreme (Dots cannot fall out) | High (Requires quality press-fitting) |
| Aesthetic Versatility | Limited to substrate color | High (Contrast via metallic/glass beads) |
| Maintenance | Low | Low (Requires checking for missing beads) |
While engraving might seem faster, the tooling overhead is significant. Milling hard substrates like 316 Stainless Steel consumes high-end carbide bits rapidly. At Landea Signs, our data shows that the cost of bit replacement often offsets the time saved in production. Conversely, Applied Bead Braille allows for the use of diverse materials—like wood or glass—that are traditionally difficult to engrave cleanly.
One of the most frequent concerns from facility managers at public transit hubs and schools is the "vandalism" factor.
Bead Integrity: In unsupervised public areas, "bored" individuals may attempt to pick beads out of the signs. If a single dot is removed, the tactile message is corrupted.
The Monolithic Advantage: Because Engraved Braille is part of the material itself, the dots are impossible to "pop out." For high-security environments or remote public spaces, Engraved Braille remains the superior choice for permanent reliability.

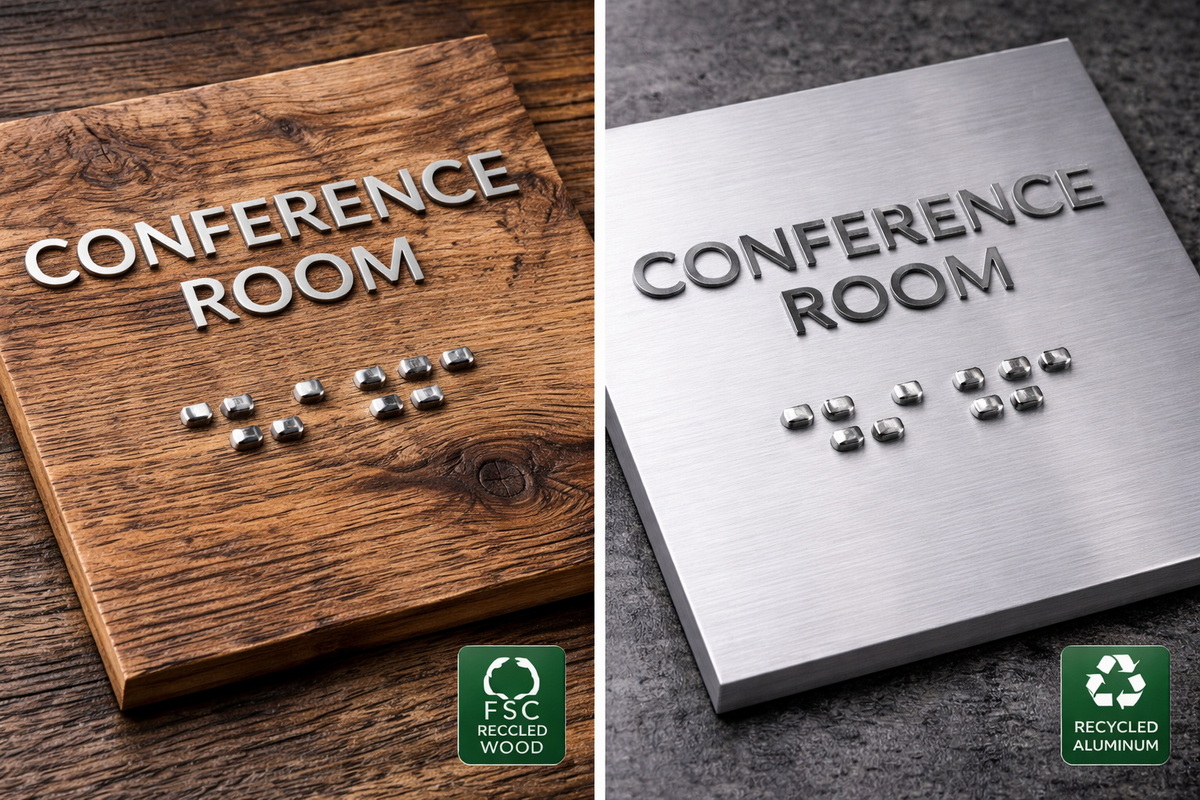

As we move through 2026, the signage industry is trending toward circular economy materials—recycled ocean plastics, FSC-certified wood, and low-carbon aluminum.
Material Compatibility: Applied Bead Braille is far more compatible with sustainable, fibrous materials. Engraving into wood often causes splintering or "fuzzing" around the dots, which compromises tactile legibility. Drilling a clean hole and inserting a metal or acrylic bead ensures a high-end, compliant finish on eco-friendly bases.
Strategic Tip: If your project requires LEED or BREEAM Certification, we recommend Applied Beads on recycled aluminum bases to maximize both environmental points and user accessibility.
Meeting international standards (specifically ISO and ADA) requires micron-level accuracy:
Dot Height: 0.6 mm to 0.9 mm.
Dot Diameter: 1.5 mm to 1.6 mm.
Inter-dot Spacing: 2.3 mm to 2.5 mm.
Applied Bead Braille excels in consistency. Because the beads are manufactured to a tolerance of $+/- 0.01mm$, you are guaranteed a uniform height across an entire facility. Engraving relies on the "flatness" of the CNC table and the sharpness of the bit, which can lead to variance over large production runs.
Based on our industry analysis at Landea Signs Co., Ltd., we recommend the following:
The signs are for unmonitored public spaces (Parks, transit tunnels, parking garages).
You require a monochromatic, minimalist look where the dots must match the sign face perfectly.
The substrate is too thin to support a drilled hole for a bead.

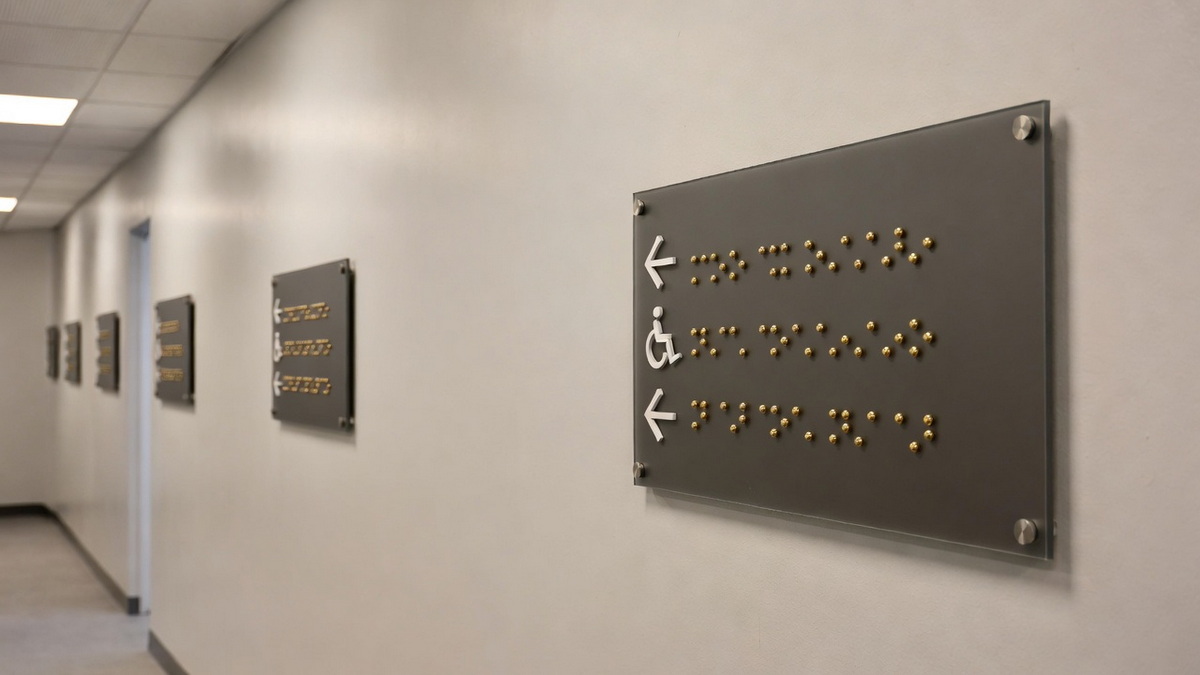

You are designing for Premium Corporate Offices, Luxury Hotels, or Healthcare facilities.
Visual Contrast is a priority (e. g., stainless steel beads on a matte black background).
Tactile Comfort is the primary KPI—the dome shape provides the most ergonomic experience for the reader.
The choice between Engraved vs. Applied Bead Braille is a balance of environment, budget, and design intent. At Landea Signs Co., Ltd., we specialize in evaluating these variables to recommend the right mechanical approach for your specific project.
Looking for a compliant, high-durability signage solution?
Contact Landea Signs Today for a Custom Quote
Q1: Can Applied Beads fall out over time?
A: Under normal conditions, no. We use a precise press-fit tolerance. However, they are more susceptible to intentional vandalism than engraved dots.
Q2: Which method is better for outdoor durability?
A: Both work well, but for Applied Beads outdoors, we recommend 316 Stainless Steel beads to ensure they do not corrode or degrade under UV exposure.
Q3: Is Engraved Braille more cost-effective for bulk orders?
A: Generally, yes. The one-step CNC process is faster for high-volume, simple designs compared to the two-step drill-and-insert method.
Q4: Does the color of the Braille beads matter?
A: Yes. For users with low vision, a bead color that contrasts with the sign face (e. g., white beads on a dark gray sign) provides an essential visual cue.
Q5: Are both methods equally compliant?
A: Yes, provided they meet the height/diameter specs. However, the "dome" profile of Applied Beads is the preferred standard for professional compliance auditors.
